10G SFP+ ZR

OCRECOM's SFP+ transceiver are multi-purpose optical modules for 10Gb/s data transmission applications at 1550nm. The transceivers are ideally suited for datacom and storage area network (SAN/NAS) applications based on the IEEE 802.3ae and Fiber Channel standards, Fiber Channel 10G, 8.5G, 4.25G, 2.125G, 1.0625G, 10G BASE-ZR, 1000 Base-ZX Ethernet, SDH/SONET and Multi-rate SFP+ transceivers.

see details

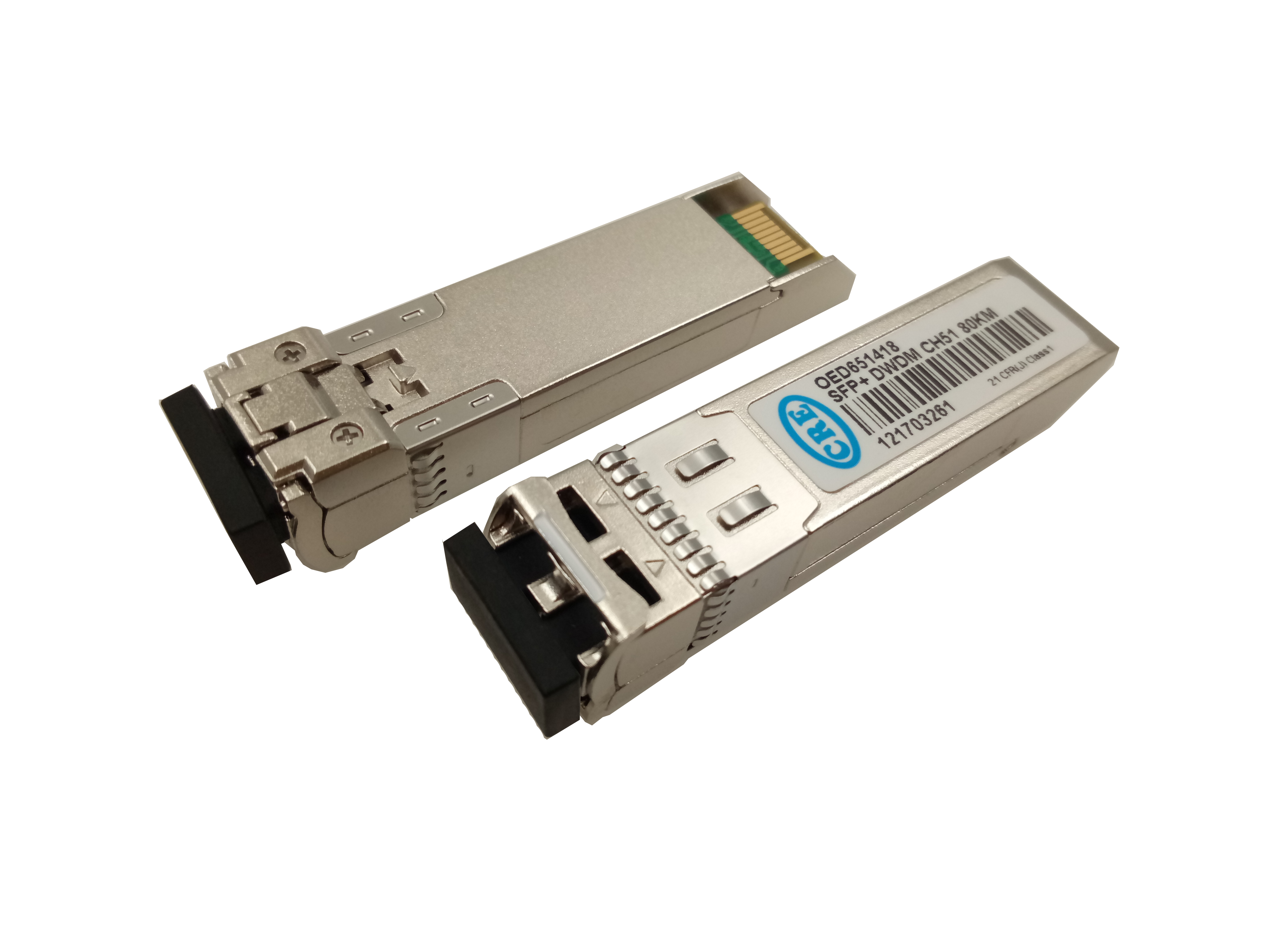

10G SFP+ DWDM 80KM

OCRECOM’s DWDM SFP+ is specifically designed for carriers and large enterprises that require a scalable, flexible, cost-effective system for multiplexing, transporting and protecting high-speed data, storage, voice and video applications in point-to-point, add/drop, ring, mesh and star network topologies. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz or 50GHz ITU Grid, C Band DWDM wavelength. 40KM and 80KM are all available.

see details

10G SFP+ CWDM

OCRECOM’s CWDM SFP+ transceiver is small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW/ER/ZR. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. The transmitter section uses a CWDM multiple quantum well DFB/EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. 10KM, 20KM, 40KM, 80KM are all available.

see details

10G SFP+ Bi-Di 60KM

OCRECOM’s Bi-Di SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270) transmitter and 1270(1330) receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

see details

10G SFP+ Bi-Di 40KM

OCRECOM’s Bi-Di SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270) transmitter and 1270(1330) receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

see details

10G SFP+ Bi-Di 20KM

OCRECOM’s Bi-Di SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270) transmitter and 1270(1330) receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

see details
